系统 | 处理器 | D2000/8 2.3GHz 8C 25W |
BIOS | 飞腾UEFI | |
内存 | 2x260-pin DDR4 2666MHz SODIMM,max 64GB | |
操作系统 | 麒麟/统信OS | |

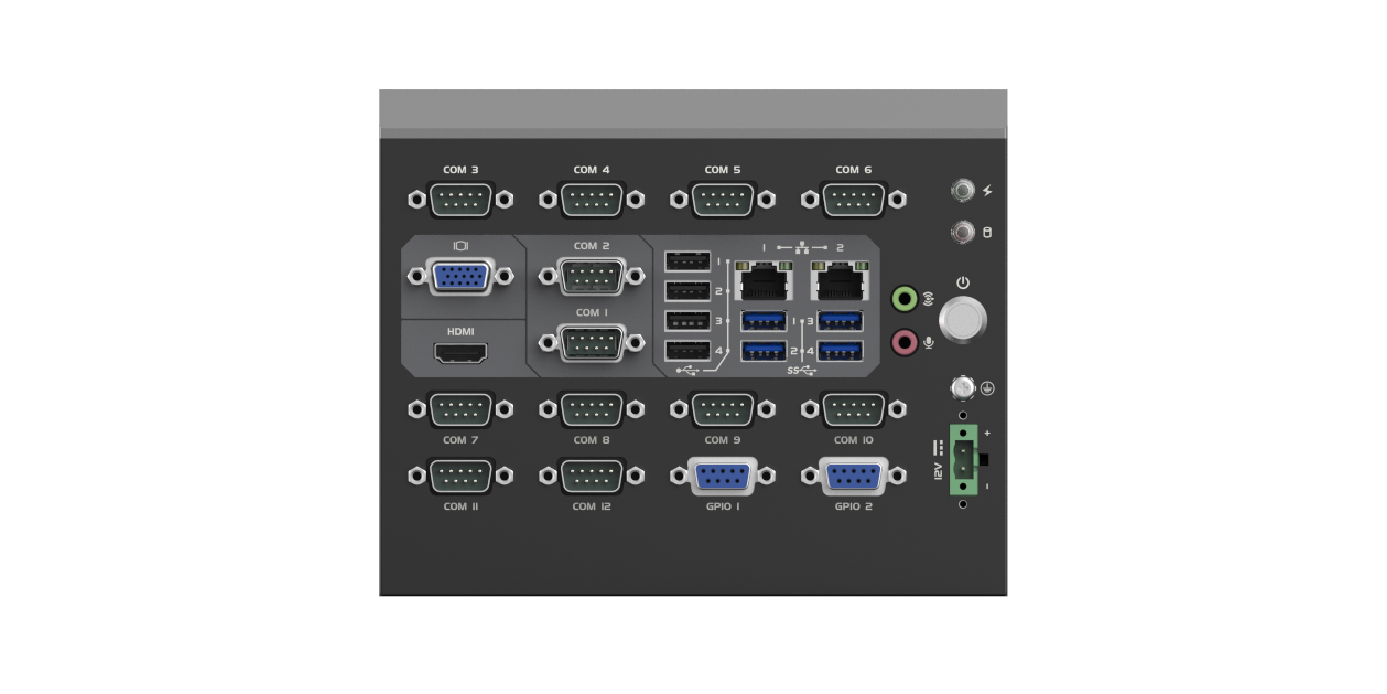

I/O 接口 | USB | 4xUSB3.0, 4xUSB2.0 |
COM | 2xRS232/422/485,10xRS232 | |
GPIO | 2xDB9 8bit GPIO | |
LED | 1xPower, 1xHDD | |
扩展 | PCIe/M.2/Mini-PCIe | 1*Mini-pcie 1x M.2 B-key 3052,带Micro SIM,支持5G模块 |
显示 | Interface | 独立双显,预留板载显示插针可支持LVDS 1xVGA, VGA 最大分辨率 1920*1200@60Hz 1xHDMI,HDMI 最大分辨率 4096*2160@24Hz |
存储 | Storage Device | 2 x 2.5”HDD/SSD |
音频 | Audio IC | Realtek ALC897 |
Audio Interface | 1xMic-in, 1xLine-out (amp输出) | |
以太网 | LAN IC | 2x YT8531H-CA |
Interface | 2xRJ45 | |
电源 | Power Input | 12V, DC-in |
Power Interface | 2-Pole Phoenix DC plug in | |
其它 | Watchdog Timer | 1 to 255 sec./min. per step |
物理参数 | Dimensions | 180mm(W)x125mm(H)x230mm(D) |
Weight | 4.1KG | |
Mounting | Desk/Wall-mounting | |
工作环境 | Operating Temp. | 0~50℃ |
Storage Temp. | -40~85℃ | |
Humidity | 10%~85% Humidity, non-condensing | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis |
