TDP

6W

NPU

1TOPS

Display

Graphics

ARM G52 2EE

Multi displays

Support 2 Displays

Interface

1 x HDMI-Out, 1 x VGA

Network

Lan IC

1 x Realtek Lan IC

Lan Interface

10/100/1000Mbps

Lan Connector

1 x RJ45 Port

Wireless Type

WIFI5/WIFI6

Wireless Interface

M.2 2230 Key E With PCIe,USB2.0

4G/5G

N/A

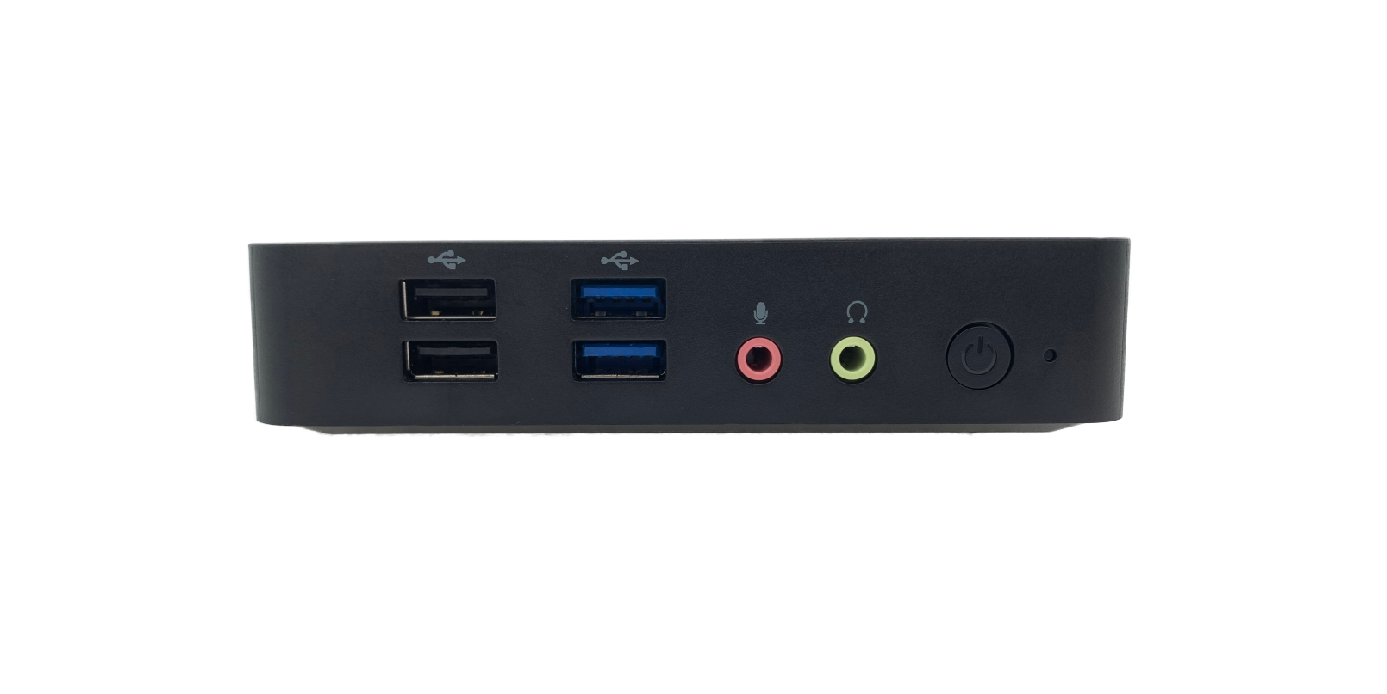

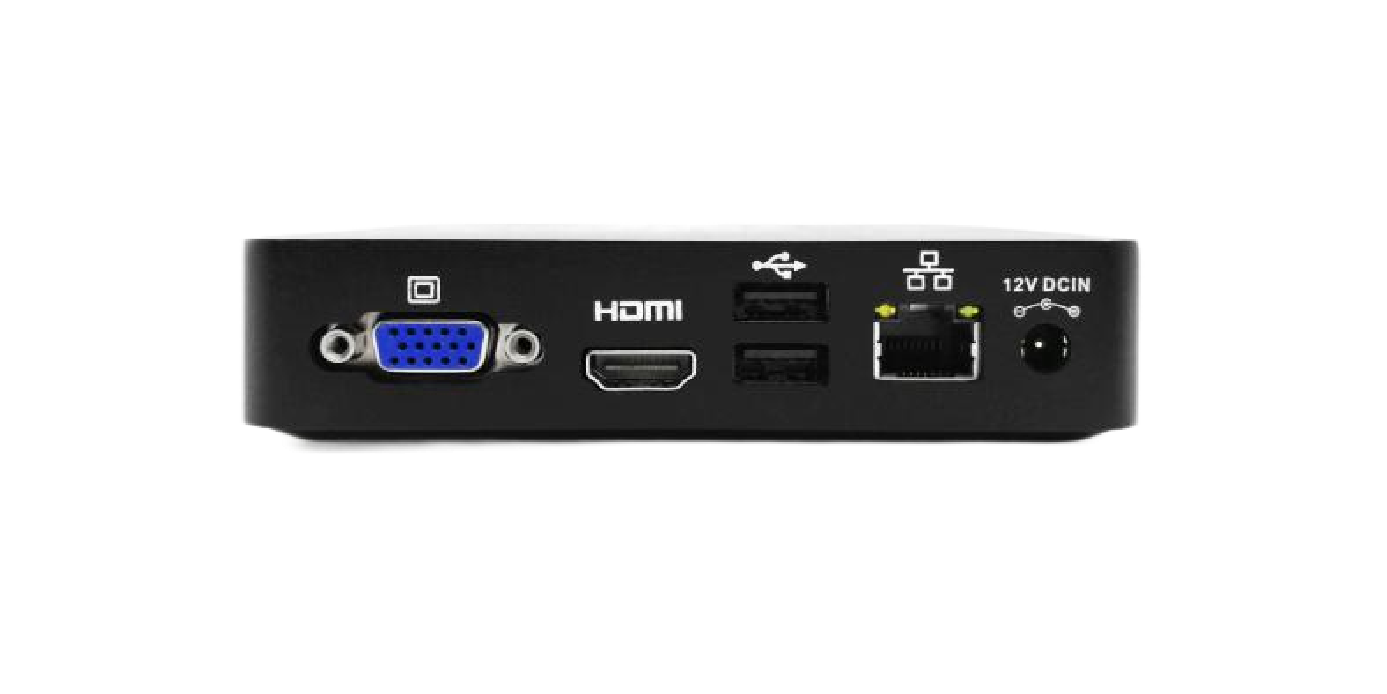

I/O interface

Serial Port

N/A

USB

2 x USB3.2（Gen2），4 x USB2.0

Button

1 x PowerButton, 1 x Recover Key

SIM CARD

N/A

AUDIO

1 x 3.5mm Mic In, 1 x 3.5mm Line Out

POWER

1 x 2.5/5.5 DC-IN Connector

System

Memory

Onboard DDR4 2GB (Support 1/4GB Option)

Storage

Onboard EMMC 8GB (Support 16/32/64GB Option)

OS

Android 11/Debian 10

WatchDog

Support

Auto Power On

Support

RTC

Power on at specific time everyday

Power Input

12v DC-In (2.5/5.5 DC Jack)

Dimension

125mm(L) x 125mm(W) x 30mm(H)

Operating Temp.

0~40℃

Operating Humidity

10%~90% non-condensing

Storage Temp

-20~70℃

Operating Humidity

5%~95% non-condensing
