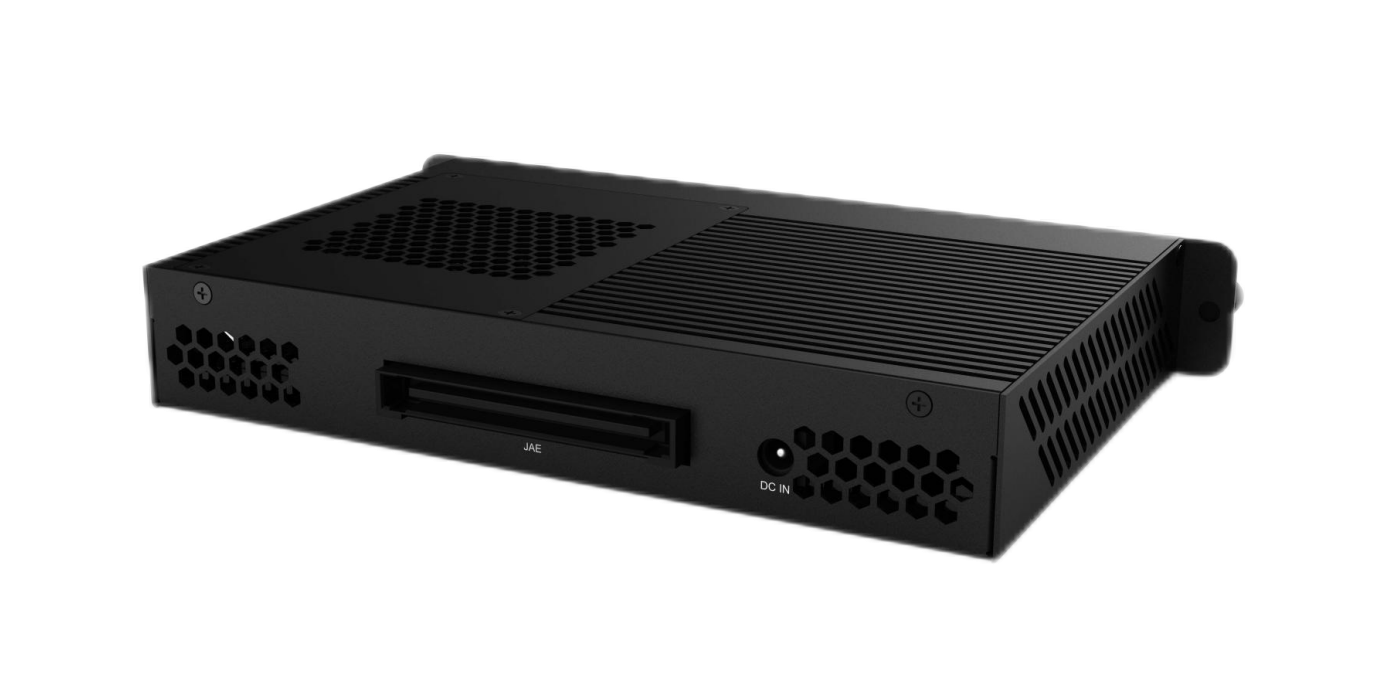

S096-Q570

标准OPS整机

采用Intel Comet Lake-S 平台设计，参考标准OPS标准，可轻松安装、升级并维持，是会议解决方案、教育和数字标牌应用的理想选择。

留言咨询业务咨询

规格参数

CPU	CPU	Intel® Comet Lake-S Processor LGA1200
	TDP	35 W
	PCH	Q570
Display	Graphic card	Intel® UHD Graphics 630
	Multi displays	Support Dual displays
	Interface	1 x DP1.4(5K 30Hz), 1 x HDMI1.4(4K 30Hz) , 1 x 80PIN（HDMI2.0 4K 60Hz output)
Network	Lan IC	1 x Intel I219LV
	Lan Interface	10/100/1000Mbps
	Lan Connector	1 x RJ45 Port
	Wireless Type	M.2 Key E 2230 Module
	Wireless Interface	Wi-Fi/BT module
I/O interface	Display	1 x HDMI 2.0 1 x DP 1.4
	USB	4 x USB3.2 Type-A, 1 x Type-C(USB3.2)
	Button	1 x PowerButton, 1 x Clear CMOS Key
	LAN	1 x RJ45
	AUDIO	1 x Line Out ; 1 x MIC-In
	POWER	1 x 2.5/5.5 DC-IN Connector
	JAE	1 x JAE 80pin : 1 HDMI 2.0, 2 USB2.0 ,1 USB3.0，TTL，Audio out
System	Memory	Dual SoDIMM DDR4 Max. 32 GB
	Storage	1* M.2 Key M 2280 Size For NVMe/SATA SSD
	OS	Window11 /Windows10/ Linux
	WatchDog	Support
	Auto Power On	Yes
	RTC	Yes
	Power Input	12-19v 2.5/5.5 DC-In
	Dimension	119mm(L) x 180mm(W) x 30mm(H)
	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
