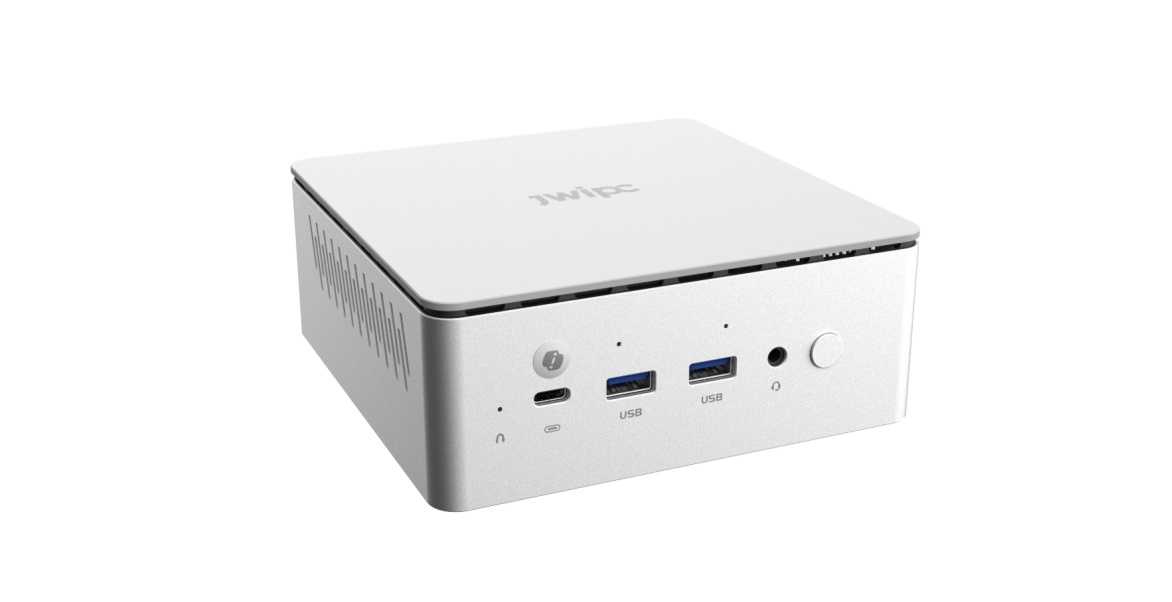

M134

高性能AI PC

M134 AI MINI PC搭载Arrow Lake 架构的第二代英特尔酷睿 Ultra 处理器，多级 XPU 设计带来高达77TOPS的 AI 算力，可支持加载众多AI应用，实现了AI 计算在电脑本地运行。

留言咨询业务咨询

规格参数

Processor System	CPU	Intel® ARL-H, MAX TDP. 65W，CPU：285H、255H、225H
	Chipset	SOC
	BIOS	AMI UEFI BIOS
Graphics	Multi displays	Support 4 display
Graphics	Interface	1 x HDMI , 1 x DP,1 x Thunderbolt 4,1 x TYPE-C
Memory	Type	2 x SO-DIMM DDR5 5600MHz
Memory	Max	96GB
Ethernet	Lan IC	2 x RTL8125（Optional RTL8111K）
	Interface	1G/2.5G（Optional）
	Connector	2 x RJ45
Wireless	Type	M.2 2230 Standard Wi-Fi/BT module， Optional WiFi6E/WiFi7 module
Wireless	Interface	1 x M.2 KEY E 2230
Storage	Type	SSD
Storage	Interface	2 x M.2 2280, PCIE 4.0
IO Interface	Front panel	1 x Power Button,1 x 3.5mm Combo Audio Jack,2 x USB3.2 Gen2 ,1 x Thunderbolt 4
IO Interface	Rear panel	1 x HDMI2.1(2K144Hz/4K120Hz/8K60Hz),1 x DP(2K144Hz/4K60Hz),2 x RJ45(2.5G),1 x TYPE-C(PD15W Output，DP Output Display and USB3.2Gen2),1 x USB3.2Gen2 ,1 x Type-c(PD in JACK) ,1 x Kensington
Software	OS Supports	WINDOWS 11
Software	TPM	Optional
Power	Power input	20V 2Pin 100W PD adapter
Size	Size	140.0 x 138.8 x 39.5 mm
Environment	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp.	-20~70℃
	Operating Humidity	5%~95% non-condensing
