H125
基于英特尔Alder Lake-N/TWIN LAKE平台设计，JWIPC H125是一款经济高效，多功能的无风扇商显终端，专为行业应用而设计，是理想的数字标牌、自主设备以及信息发布系统的硬件解决方案。
CPU | CPU | Intel® Processor N100/N150 |
TDP | 6 W | |
Display | Graphics card | Intel® UHD Graphics |
Multi displays | Support triple display | |

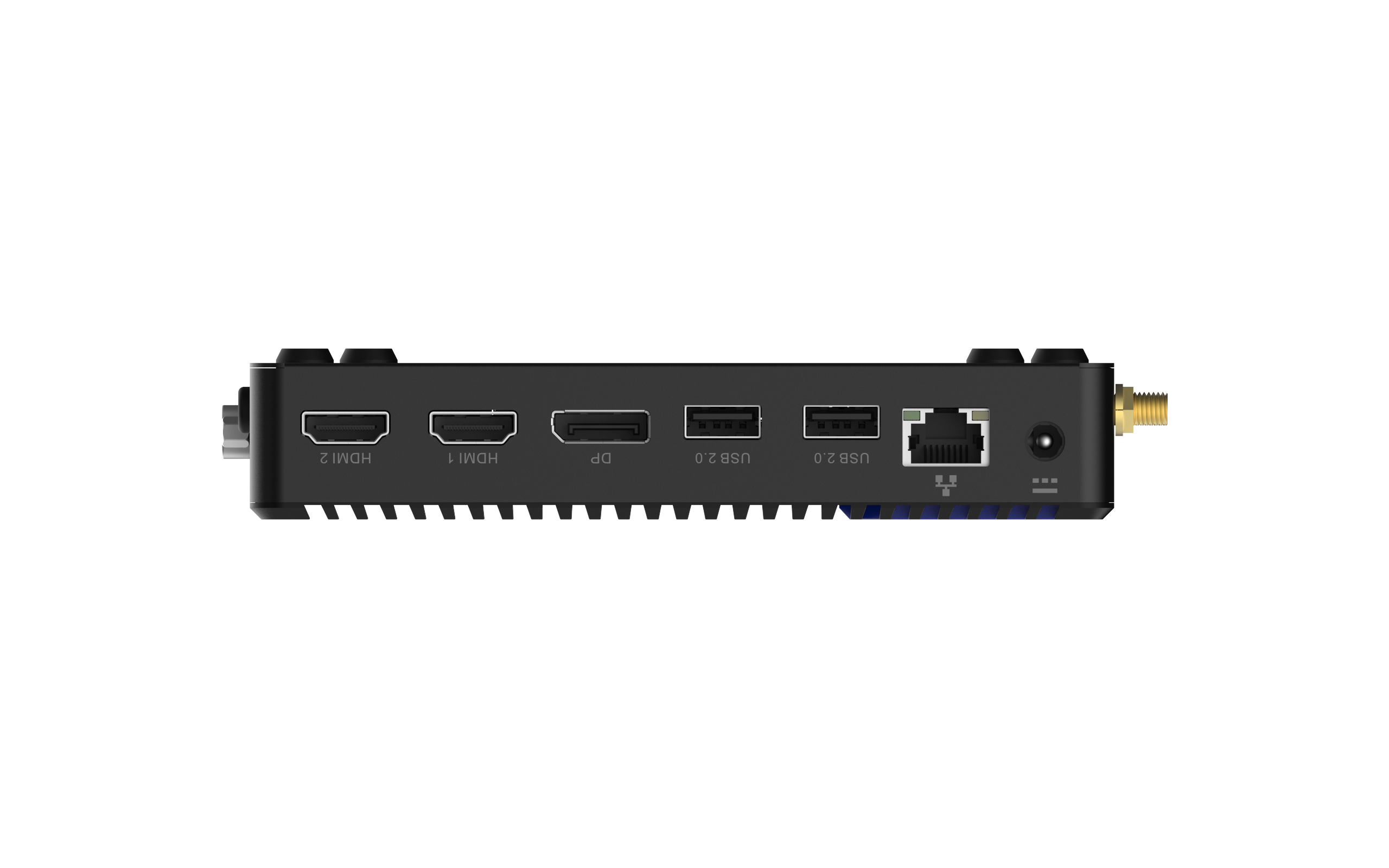

Interface | 2 x HDMI-Out 4K@60Hz | |
1 x DP-Out 4K@60Hz | ||
Display | Graphics card | Intel® UHD Graphics |
Multi displays | Support triple display | |
Interface | 2 x HDMI-Out 4K@60Hz | |
1 x DP-Out 4K@60Hz | ||
Network | LAN IC | 1 x LAN IC RTL8111H |
LAN Interface | 10/100/1000 Mbps | |
LAN Connector | 1 x RJ45 Port | |
Wireless Type | M.2 Key E 2230 Module | |
Wireless Interface | AW-CB231NF/Intel AX101 | |
4G/5G | Optional | |

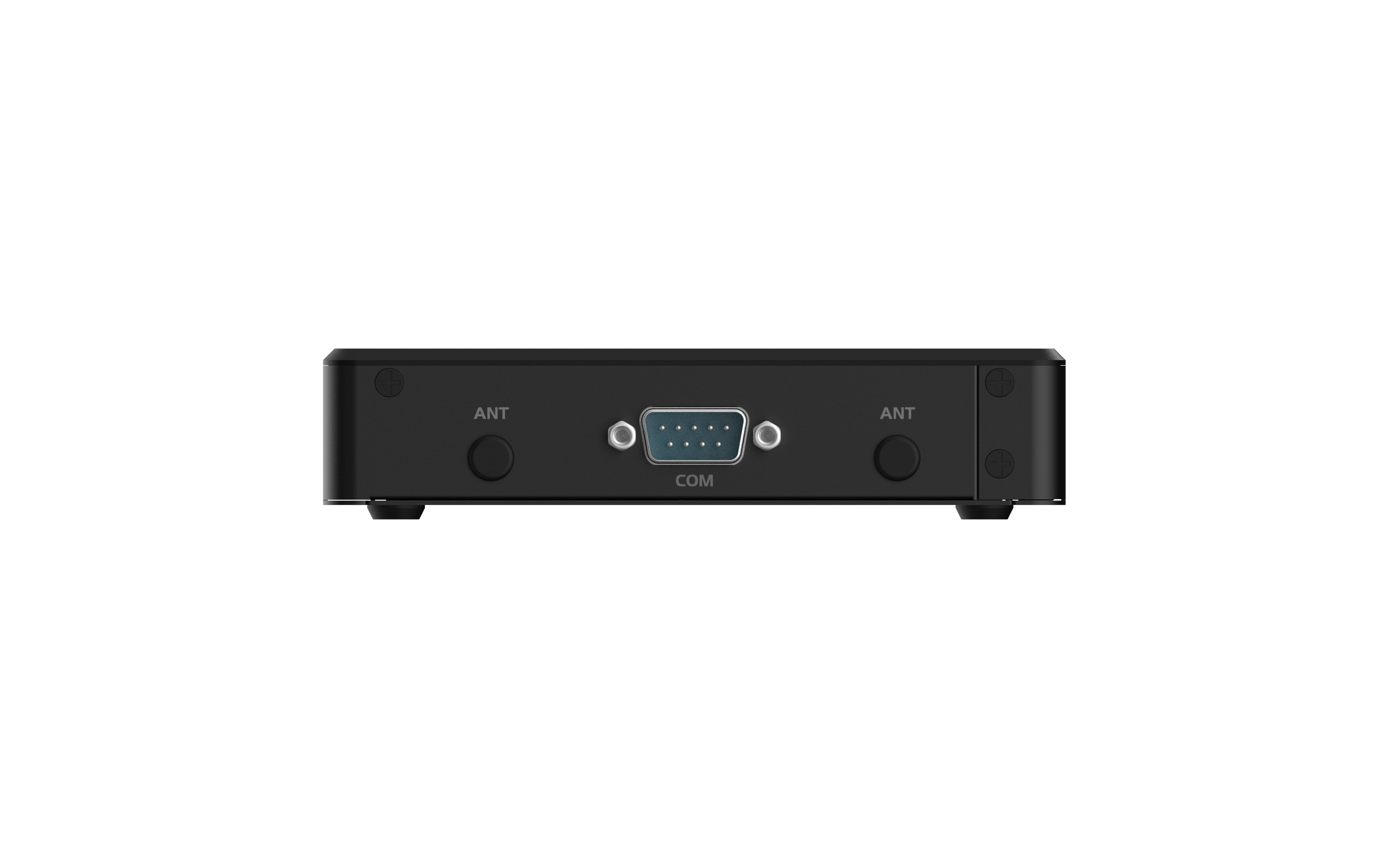

I/O interface | Serial Port | 1 x COM1 RS232/RS485 (optional) |

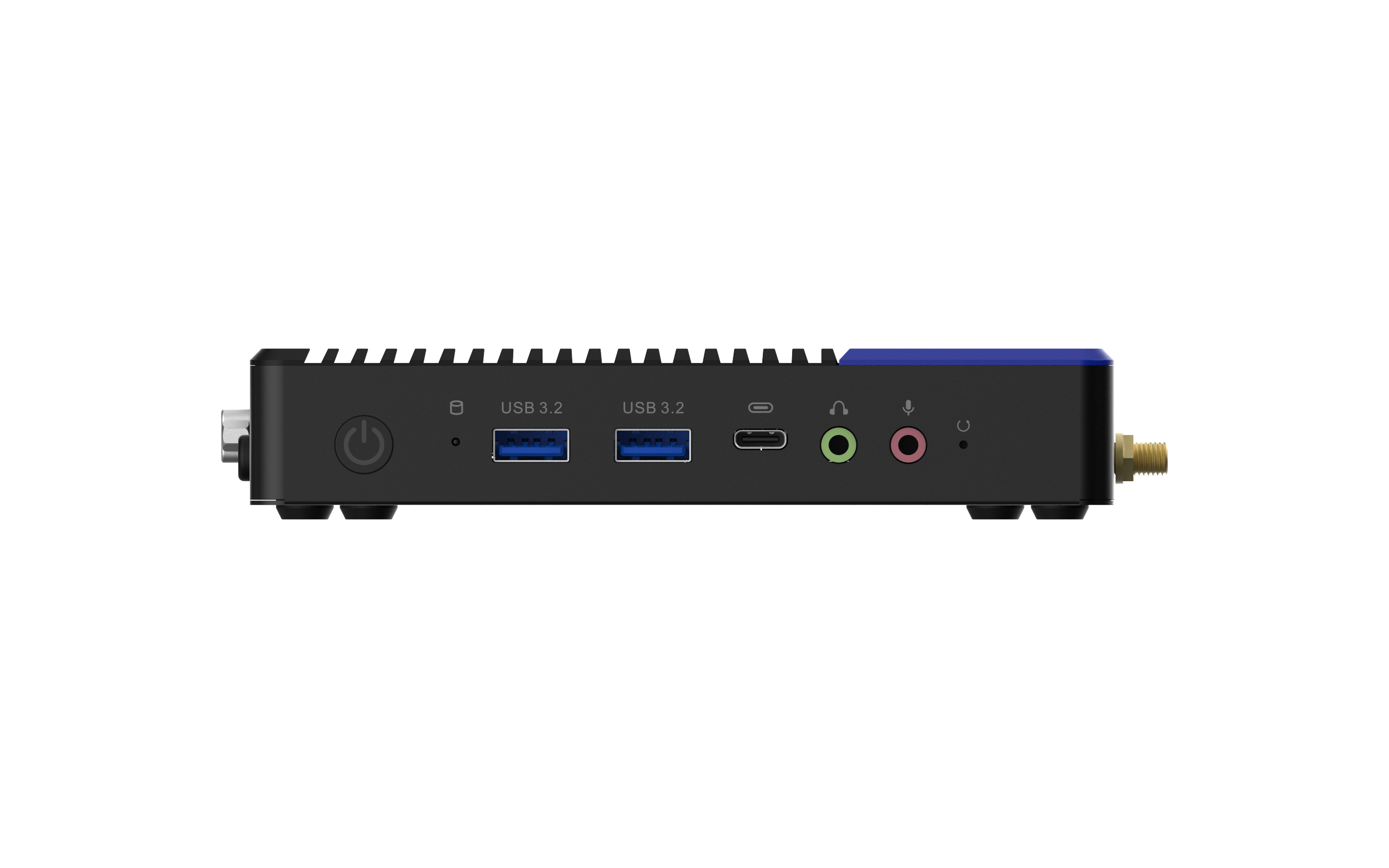

USB | 2 x USB3.2 Gen 2 Type-A | |
2 x USB2.0 Type-A | ||
1 x Type-C (USB3.2 Gen 2) | ||
Button | 1 x Power Button, 1 x Reset Button | |
SIM Card | 1 x SIM card slot | |
Audio | 1 x Line-out, 1 x Mic-in | |
Power | 1 x 2.5/5.5 DC-IN |
智微智能为您提供量身定制的解决方案，满足从产品定义到软硬件开发的各种需求，会安排资深产品工程师为您服务。
