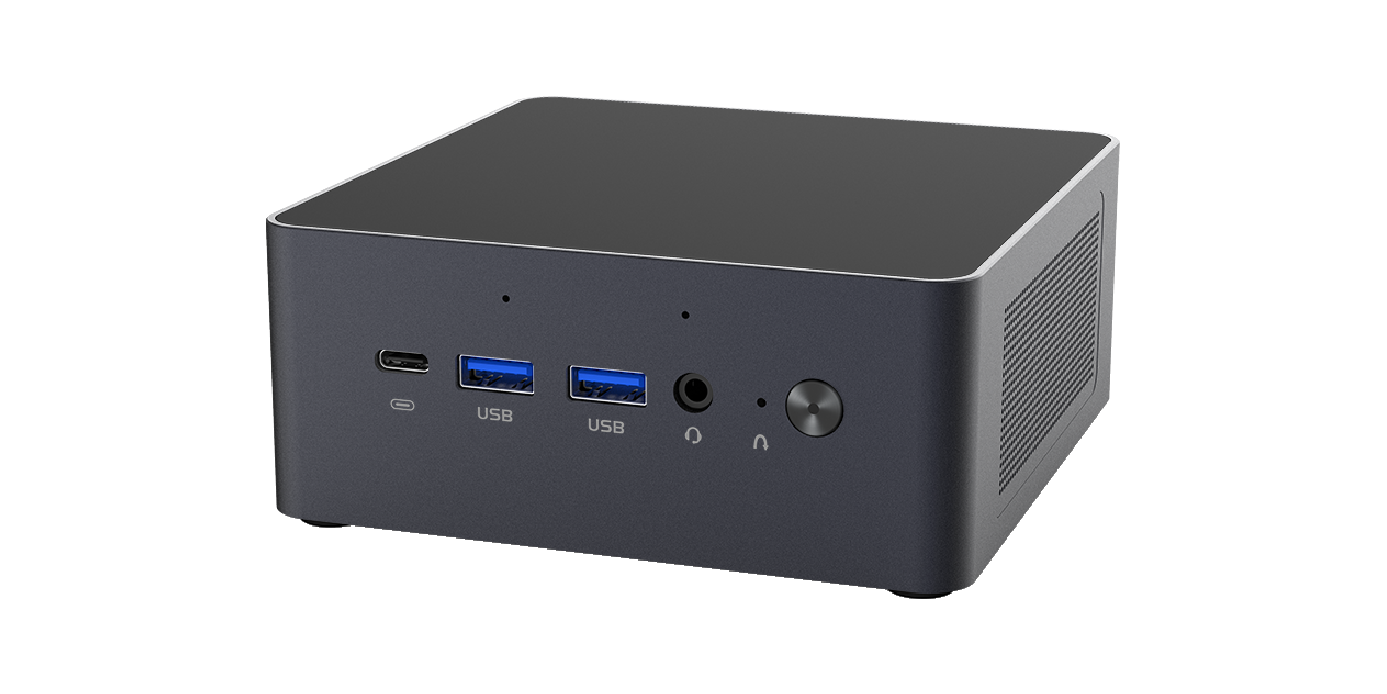

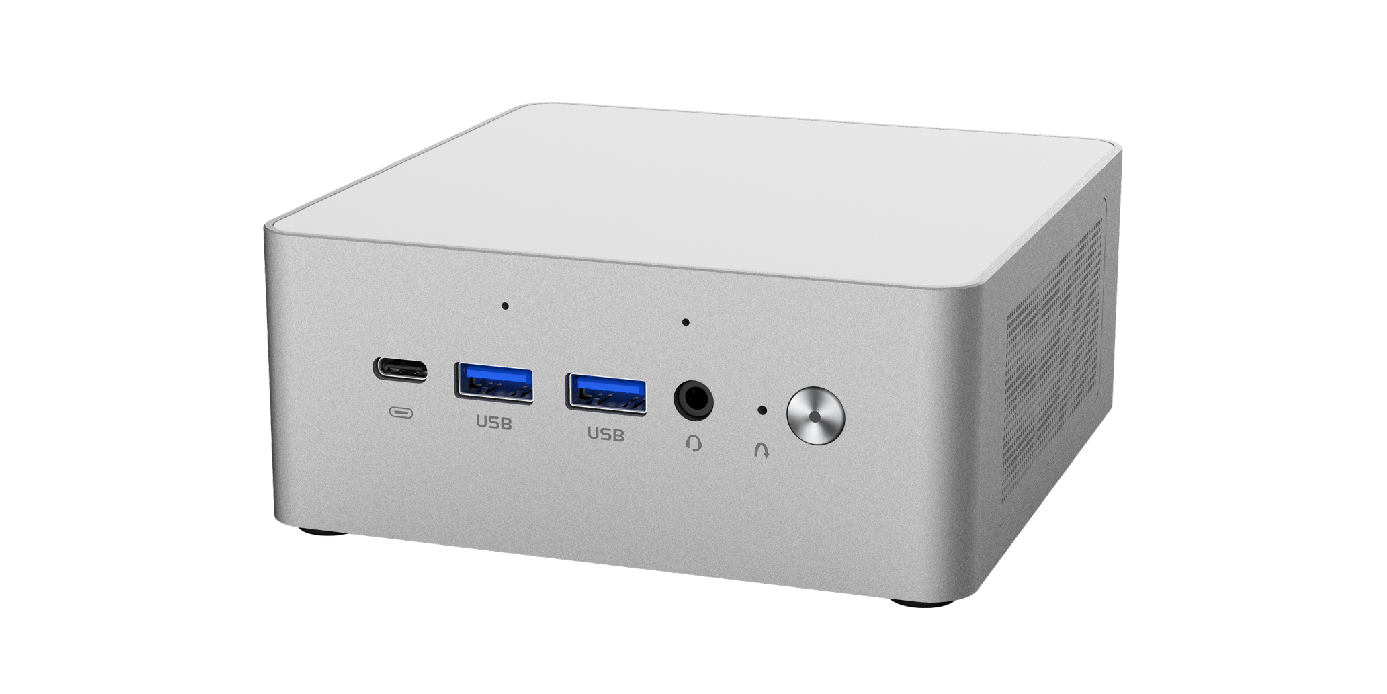

N124
智微智能 N124 MINI PC 采用英特尔Meteor Lake平台处理器。支持四路显示输出,是多显示游戏和设计办公设备得理想选择。SODIMM DDR5 RAM确保快速多任务处理。TPM 2.0保护您的数据,vPro简化管理。
Processor System | CPU | Intel® Meteor Lake Processor TDP=28w |
Chipset | SOC | |
BIOS | AMI UEFI BIOS | |
AI | Integrated Intel VPU AI Accelerator | |
Graphics | Graphic card | Intel® Arc Graphics |
Multi displays | 4 Simultaneous 4 Displays | |
Interface | 2x HDMI2.0 out 4K60Hz, 2 x Type-C(4K @60Hz out) | |
Memory | Type | Dual Channel SoDIMM DDR5 @5600MHz |
Max | 32 GB | |
Ethernet | Lan IC | 1x Lan IC (Intel I219LM/ Realtel 8125B/RTL8111K ), 1x Lan IC (Intel I210AT) |
Interface | 10/ 100/ 1000M/ 2.5G | |
Wireless | Type | Wi-Fi/BT module |
Interface | 1x M.2 Key E 2230 slot For WiFi-6/ WiFi-7 Intel BE200NGW | |
Storage | Type | SATA/NVMe SSD |
Interface | 1x M.2 Key M slot for 2280 size SSD | |
IO Interface | Front panel | 1x PowerButton with Blue Led light 1x Reset Button 1x Headphone & MIC-In 2 In 1 Connector 2x DMIC 2x USB3.2 Gen2, 1x Type-C (4K @60Hz Display, USB3.2 Gen2 Type-A, 5v-3A Output ) |
Rear panel | 2x USB2.0 Type-A Co_Lay RJ45 Ethernet Port 1x RJ45 Port 2x HDMI2.0 4K @60Hz Output 1x Type-C( 4K @60Hz and USB3.2 Gen1 and 5V-3A out and PD-In 100w) 1x DC IN | |
Software | OS Supports | Windows11/Linux |
Watchdog | Support | |
vPro/AMT | Support (Optional) | |
TPM | Infineon TPM2.0 chip | |
Onboard | 1x RS232 COM, 1x USB2.0 10PIN Header Additional 2x USB2.0 Ports, 1x 2PIN PowerButton | |
Power | Power input | 12-19V DC-In |
Size | Dimension | 120(L) x 120(W) x 49(H)mm |
Environment | Operating Temp. | -5~45℃ |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp. | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
智微智能为您提供量身定制的解决方案,满足从产品定义到软硬件开发的各种需求,会安排资深产品工程师为您服务。
